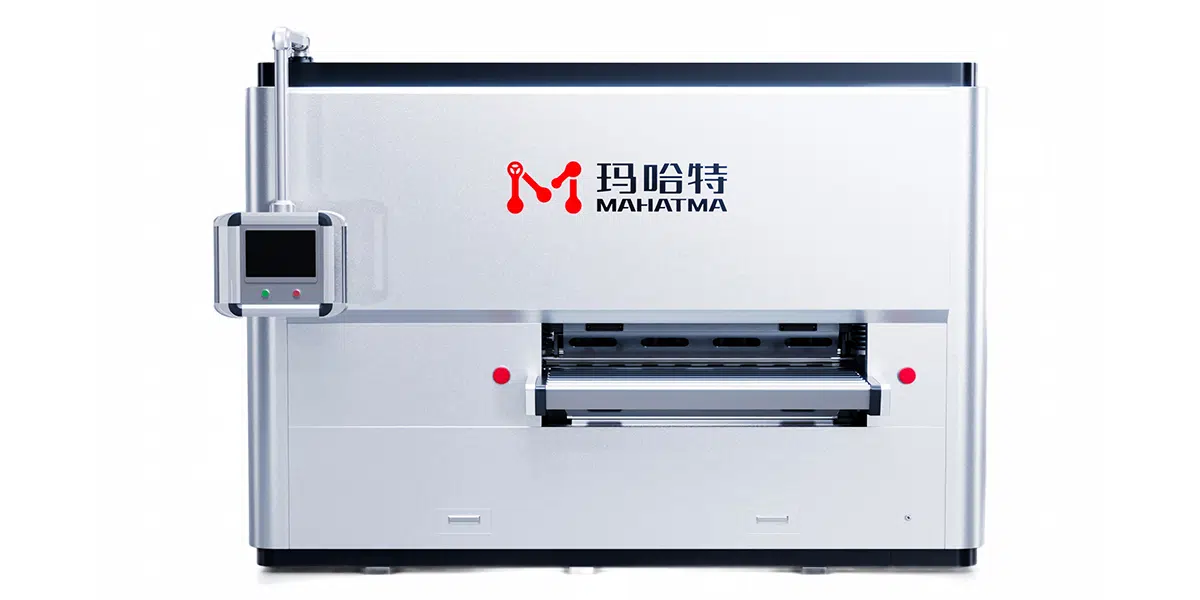

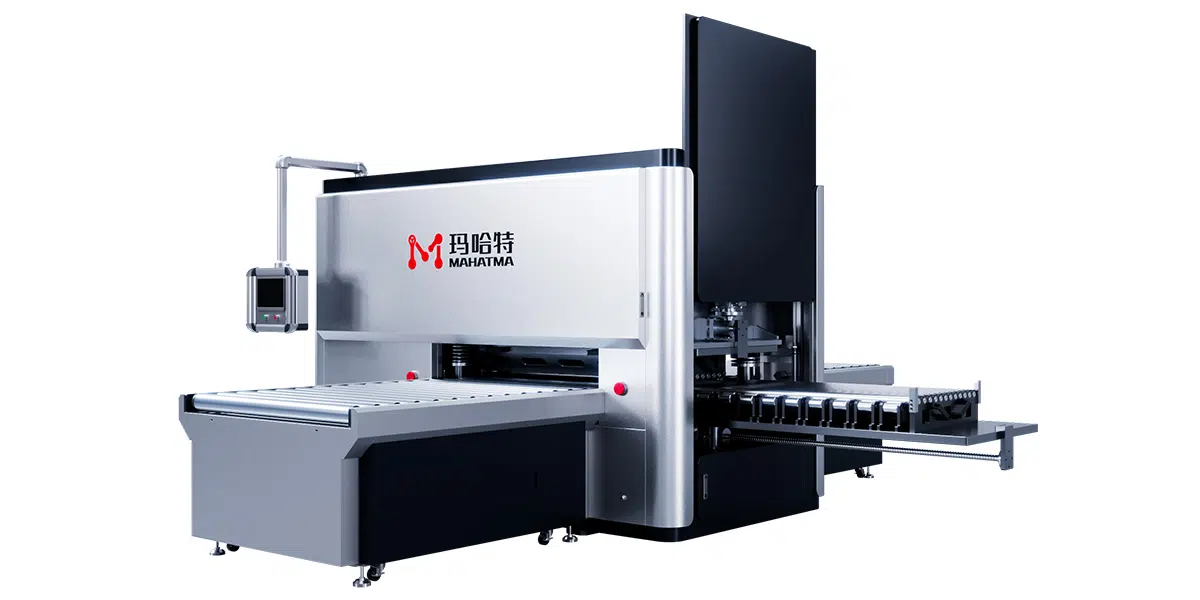

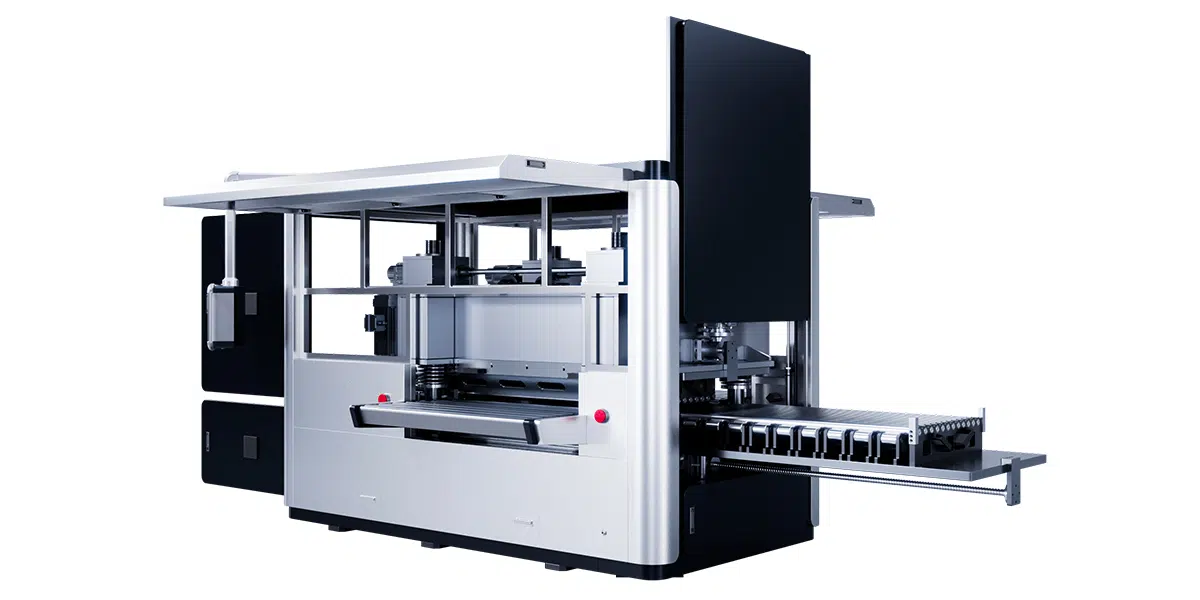

The MAHATMA Part Leveler is a high‑precision leveling solution designed for laser‑cut, stamped, and welded metal parts. By removing internal stress and correcting deformation within seconds, it ensures every component achieves a perfectly flat, assembly‑ready surface. For manufacturers seeking higher quality, greater consistency, and reduced rework, the Part Leveler has become an essential piece of equipment on modern production lines.
This leveling system integrates servo motors, CNC control, and a self‑developed intelligent super‑leveling platform capable of automatically setting leveling pressure and initial roller parameters based on stored process data for different coils and sheets. Engineers can modify, store, and recall process parameters at any time, ensuring stable and repeatable leveling performance.
Equipped with advanced functions such as automatic laser 3D detection, misoperation identification, and early‑warning diagnostics, it represents a high‑end leveling architecture built on modern automation and sensing technology. The servo‑hydraulic drive delivers high speed, high torque, and precise positional control while reducing hydraulic oil usage and overall energy consumption, resulting in faster response, smoother leveling cycles, and improved environmental efficiency.
| Machine Model | MHTW15 | MHTW30 | MHTW40 | MHTW50 | MHTW60 | MHTW80 | MHTW100 | MHTW120 | MHTW150 | MHTW200 |
| Roller Diameter(mm) | φ15 | φ30 | φ40 | φ50 | φ60 | φ80 | φ100 | φ120 | φ150 | φ200 |
| Roller Number | 25 | 23 | 21 | 19 | 19 | 19 | 19 | 19 | 15/19 | 15/19 |
| Speed(m/min) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Leveled Width(mm) | <1000 | <2000 | <2000 | <2000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3500 |
| Rated Thickness(mm） | 0.08~1 | 0.5~3 | 0.6~4 | 0.8~5 | 1~8 | 2~10 | 3~12 | 4~20 | 6~30 | 8~30 |
| Max-Thickness(mm) | 2 | 4 | 6 | 8 | 12 | 16 | 20 | 25 | 30 | 40 |
| Short-length(mm) | 30 | 60 | 75 | 90 | 100 | 130 | 160 | 190 | 240 | 310 |
| Applicable Object | Laser cutting part,Punching & Perforated sheet | |||||||||
Engineered for large thick steel plates, non‑ferrous metals, mirror‑finish sheets, sheet metal, laser‑cut parts, and flame‑cut components, this mechanical leveling system delivers exceptional surface quality and high‑precision flatness. The advanced four‑roll or six‑roll leveling structure ensures uniform roller force and superior rigidity, eliminating roller marks and effectively correcting complex deformation issues that traditional levelers cannot resolve. This design significantly expands material compatibility and enhances overall processing efficiency.
Built with a robust frame and advanced multi‑roller leveling technology, the MAHATMA Part Leveler delivers stable performance across a wide range of materials and thicknesses. It significantly improves flatness, enhances welding accuracy, and minimizes downstream defects—helping factories boost productivity while reducing overall production costs.
Whether processing small batches or running continuous high‑volume production, the MAHATMA Part Leveler provides the reliability and precision needed to elevate manufacturing capability and strengthen competitive advantage in the global market.
MAHATMA is a specialized company dedicated to the research, development, manufacturing, and sales of leveling machines. With many years of experience in metal sheet‑leveling technology, we have established a mature and reliable manufacturing system and also provide professional on‑site installation services at customer facilities.
